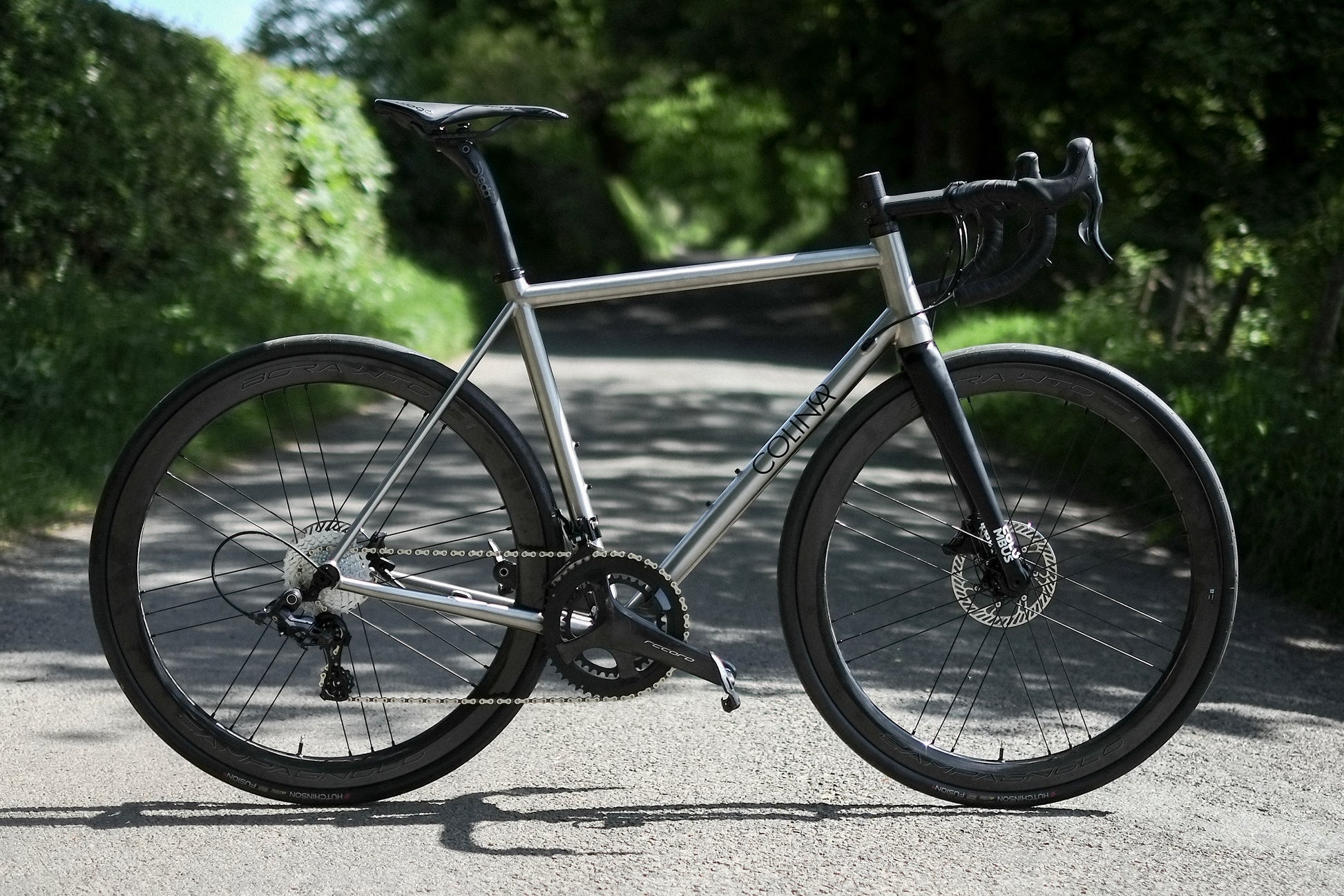

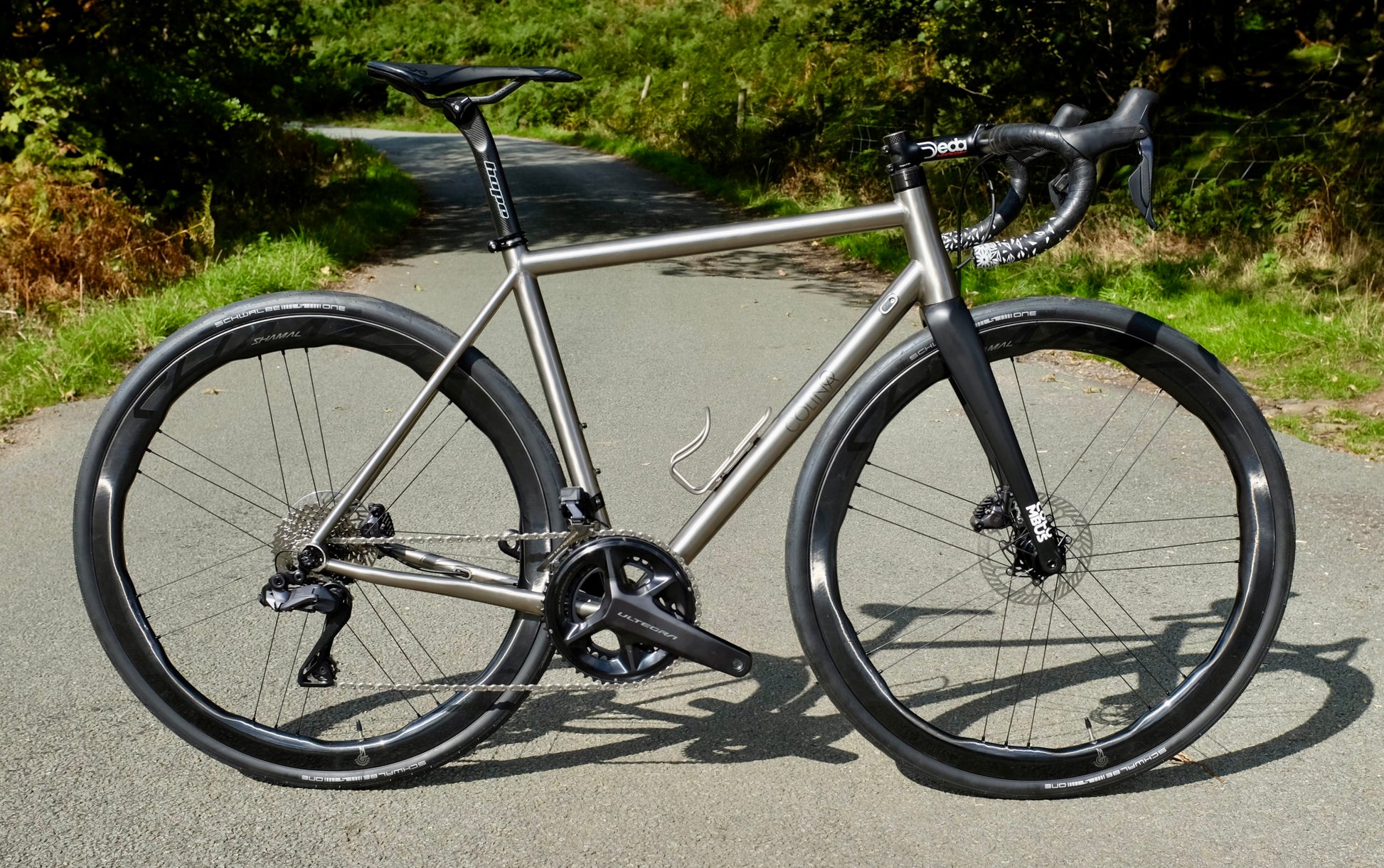

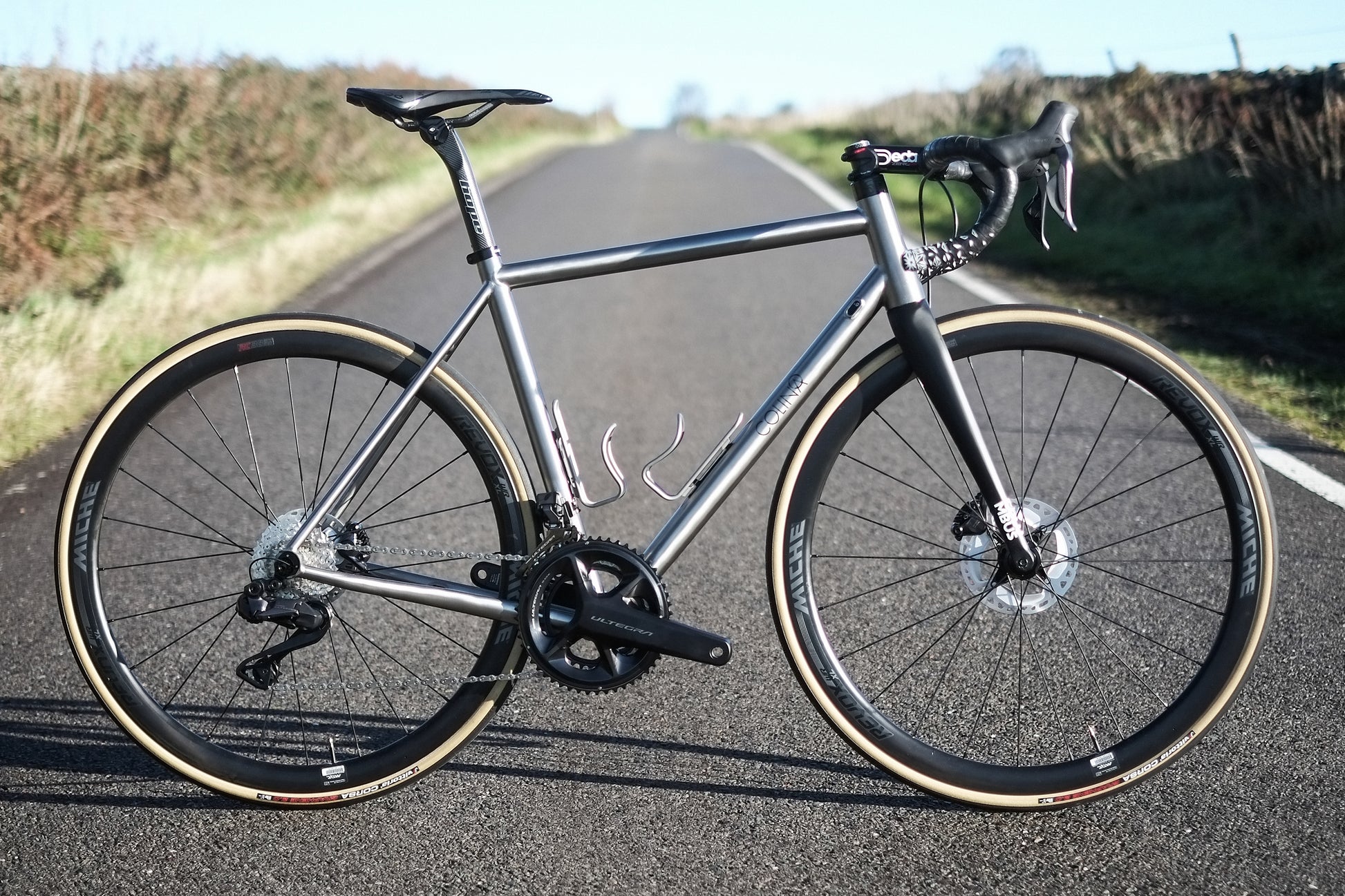

ABANICOS frame. (summer)

ABANICOS frame. (summer)

Regular price £2,100.00 GBP
Regular price Sale price £2,100.00 GBP
Sale Sold out
Tax included.

 Key Specifications:

  • Oversized tapered headtube (1.1/8-1.1/5)
  • Oversize triple butted tubeset
  • T47 Cast Bottom Bracket Shell

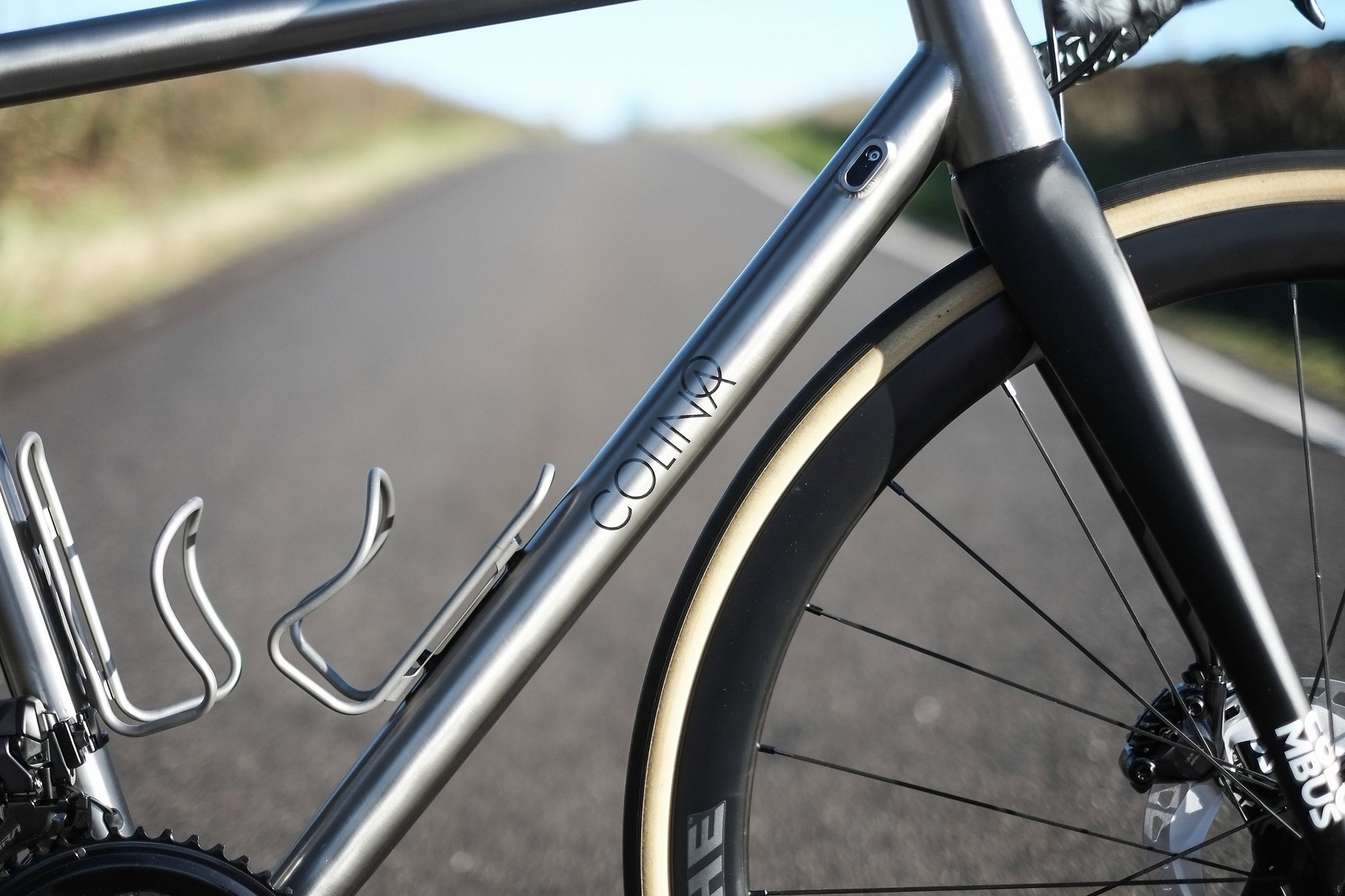

  • Internal routing for all shifting systems
  • 31.6 seatpost required
  • Clearance for up to 32mm tyres

Price includes: Headset, Carbon Ti seat clamp, thru axle & carbon front mech clamp.

The all new Abanicos disc frame builds off the long running rim brake model to offer the cutting edge in titanium technology. This version features a triple butted tubeset and an innovative bottom bracket system giving optimum stiffness while tucking hose/cables/wires neatly out of sight. Shifting friction has been optimised to keep it to a minimum, allowing mechanical groupsets to run flawlessly. The proven geometry remains giving the Abanicos disc the racing focus it’s known for.

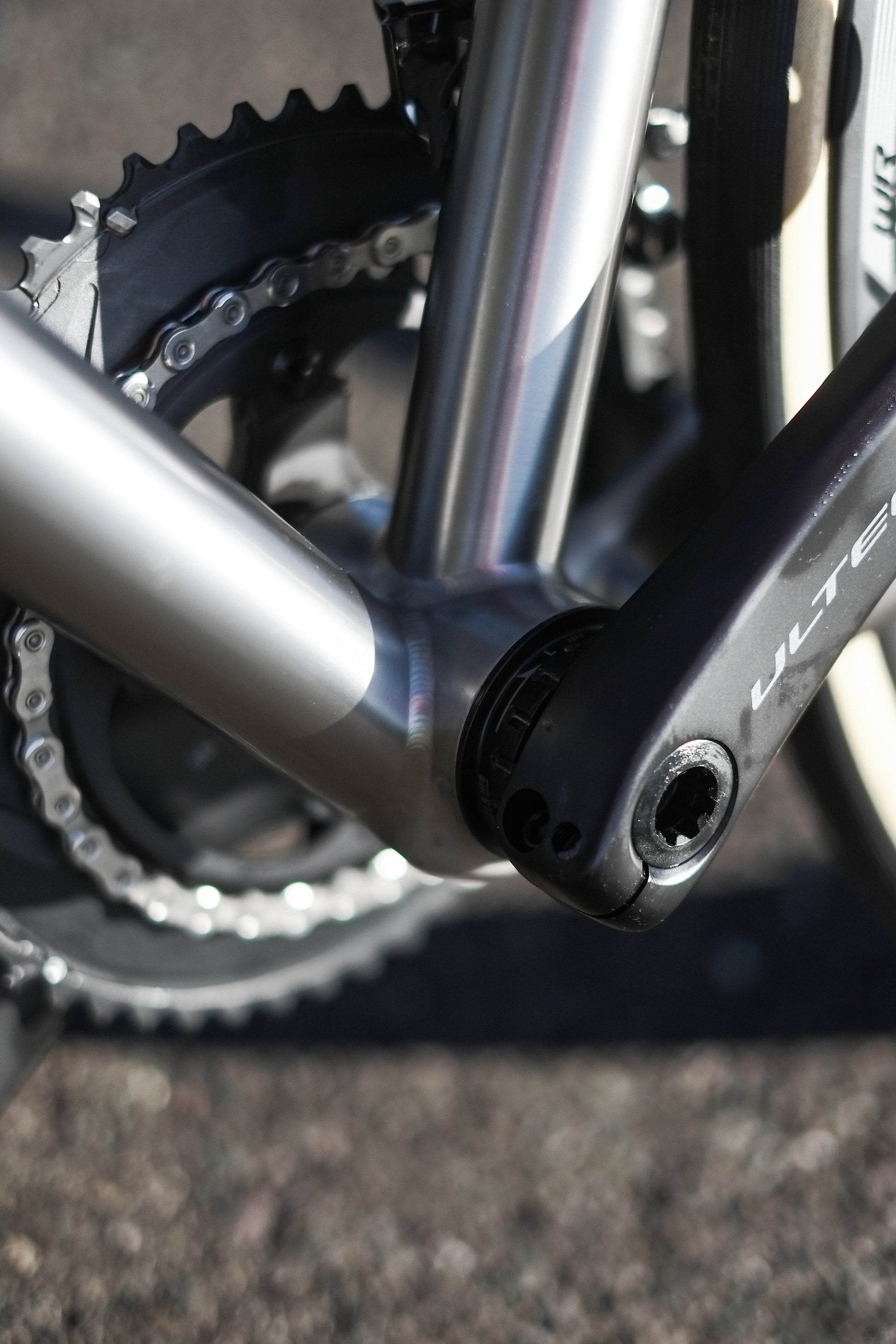

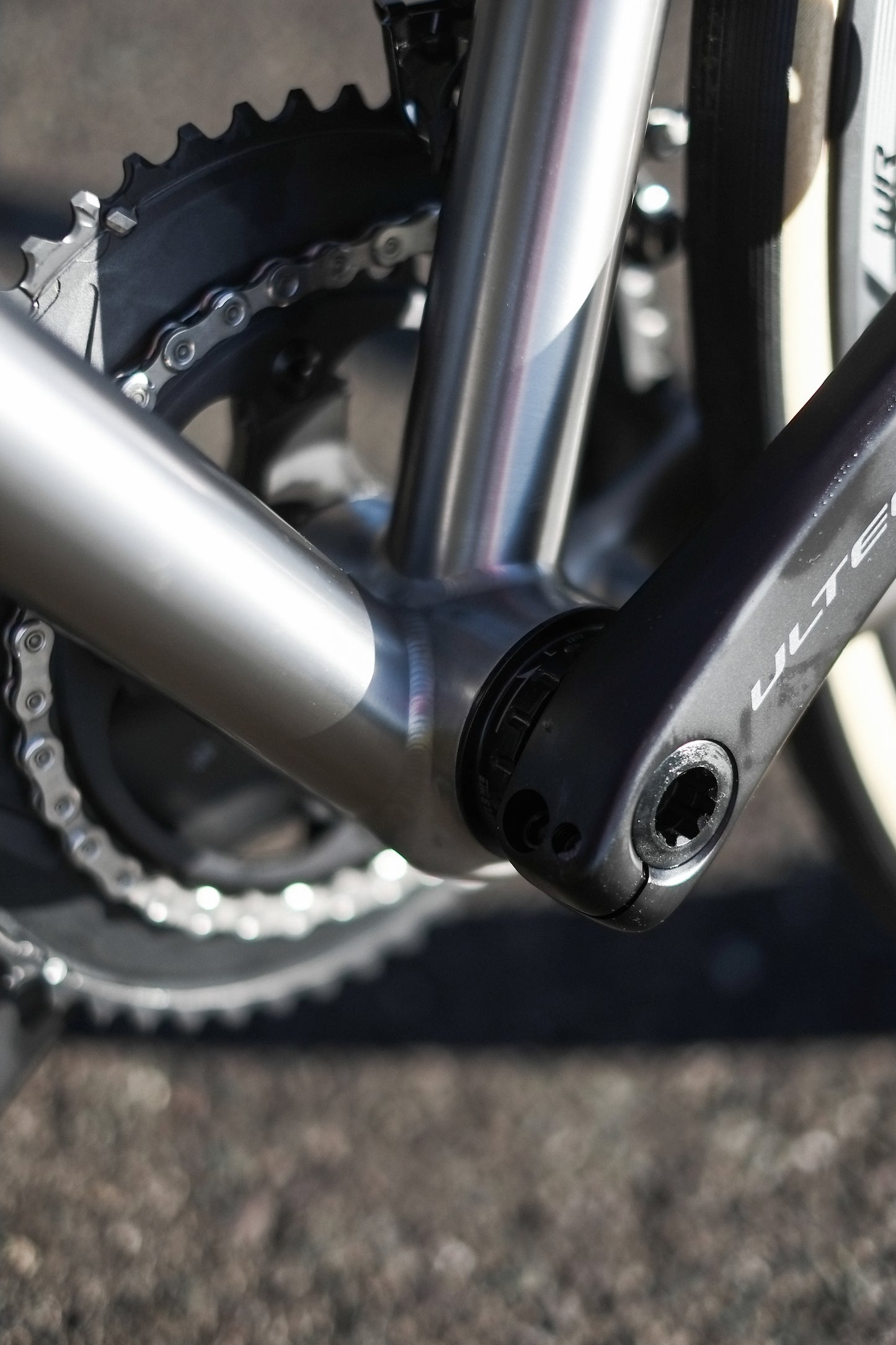

Cast titanium technology has allowed us to create a completely custom shaped bottom bracket shell. Instead of using a round bottom bracket, effectively a tube, we have been able to design a completely integrated cable system in addition to increasing the surface area on which to weld the extra oversize chain stays.

View full details
  • We encourage all of our customers to pick up the phone and give us a call to discuss full-build options and custom requirements.
